CX-NSGM2 1200W Geomembrane Wedge Welder

Ask Lasest Price
Brand Name :	CANEX Geomembrane Wedge Welder
Model Number :	CX-NSGM2 Hot Wedge Welder

Add to Cart

Product Details
Company Profile

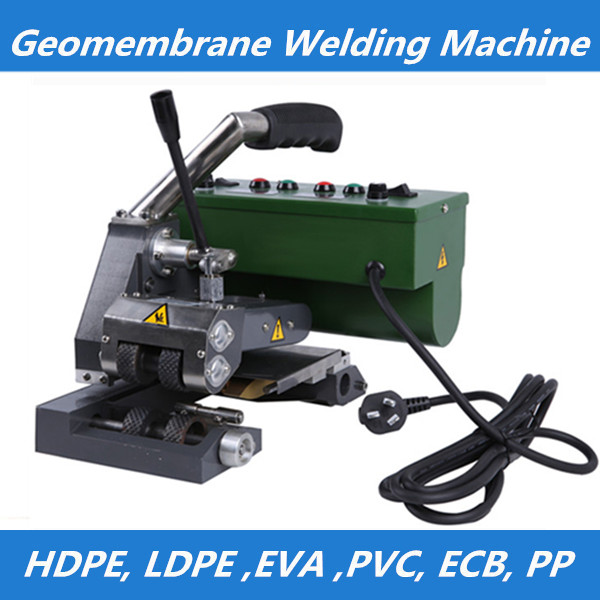

CX-NSGM2 1200W Geomembrane Wedge Welder

CX-NSGM2 1200W Geomembrane Wedge Welder (with digital chip control and display) vinil hot wedge welder

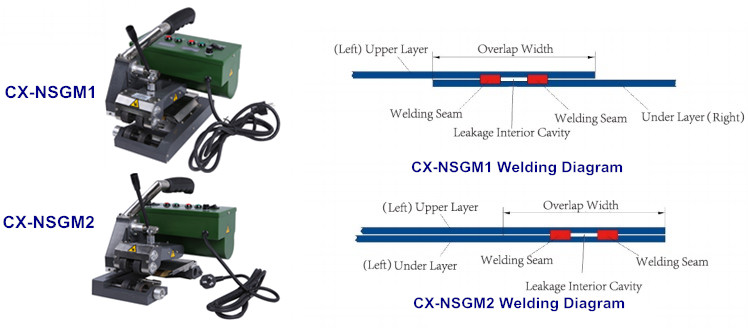

CX-NSGM2 Membrane laying way towards one wedge

adopt advanced hot weldge structure. with its high power, high speed and pressure, it welds 0.2mm-2.0mm thickness

It is very small and light. It is available for welding over 1.0mm HDPE, LDPE ,EVA ,PVC, ECB, PP and other hot melt materials.

Specially designed for water conservancy, aquaculture,landfills,chemical mining, sewage treatment, roof construction and other waterproof projects. geomembrane hot wedge welder

máuin de solda da geome gmbrana - soldadora de estrusora geomembrana

CX-NSGM2 Hot Wedge Welder vinil hot wedge welder

Technical Parameters:

Voltage: cuña caliente soldador	220V±5% geomembrane sealing weld machine
Frequency: cuña caliente soldador	50/60Hz
Power: cua caliente soldador	1200W machine soudage membrane pvc
Welding speed:	0.5-8.0 m/min
Heating temperature:	0-450°C solda da geomembrana de pead
Thickness of material:	0.2 mm- 2.0 mm
Overlap width:	12 cm solda da geomembrana de pead
Welding width:	15mm×2, interior cavity 20mm
Seam strength:	≥85% base material (tensile resistant in shear direction)
Weight:	7.5 kgs
Insulation class:	class II cua caliente soldador
Usage máquina de solda da geomembrana	for welding PE PVC and other hot melt materials

hot wedge welding machine cuña caliente soldador
solda da geomembrana de pead cuña caliente soldadorpe membrane plastic weld machine
CX-NSGM2 1200W Geomembrane Wedge Welder

pe membrane plastic weld machine

mquina de solda da geomembrana soldadura por cuña caliente - cuña caliente soldador

CX-NSGM2 Geomembrane Wedge Welder

Welding Operation :cuña caliente soldador

Applications: solda geomembrana

1.Railway/ highway subway tunnel waterproof construction;

2.Water conservancy projects, man-made landscape;

3.Riverbank, aquaculture farm;

4..Refuse landfill, sewage treatment;

5.Chemical,mining industry;

6.Construction waterproofing projects.

Package:

Package box: aluminium box inner and carton box outer

Package size: 40*26*30 cm

Weigh of package:12.5 kgs

Package includes: a welder, wrenches, screw drivers and a manual.

geomenbrane welding machine

máquina de solda da geomembrana - geomembrana máquina de soldadura

estrusora de geomenbrana - máquina de solda da geomembrana

hot wedge welder- pe membrane plastic weld machine - máquina de solda da geomembrana

geomembrana máquina de soldadura - selladora de geomembrana

machine de soudage géomembrane - cuña caliente soldador - geomembrane

sealing weld machine - saldatrici per teli in pvc- máquina de solda da geomembrana

machine de soudage géomembrane - soldadora de estrusora geomembrana

welded tpo membrane - soldadura por cuña caliente - cuña caliente soldador

CX-NSGM2 1200W Geomembrane Wedge Welder
