CX-NS800 Hot Wedge Geomembrane Welder so

Ask Lasest Price
Brand Name :	CANEX Geomembrane Hot Wedge Welder
Model Number :	CX-NS800 Hot Wedge Welder

Add to Cart

Product Details
Company Profile

CX-NS800 Hot Wedge Geomembrane Welder so

CX-NS800 Hot Wedge Geomembrane Welder solda geomembrana

mquina de solda da geomembrana
Hot wedge welding machine is small, light, high welding efficient.
It is available for welding HDPE, LDPE ,EVA ,PVC, ECB, PP and other hot melt materials.

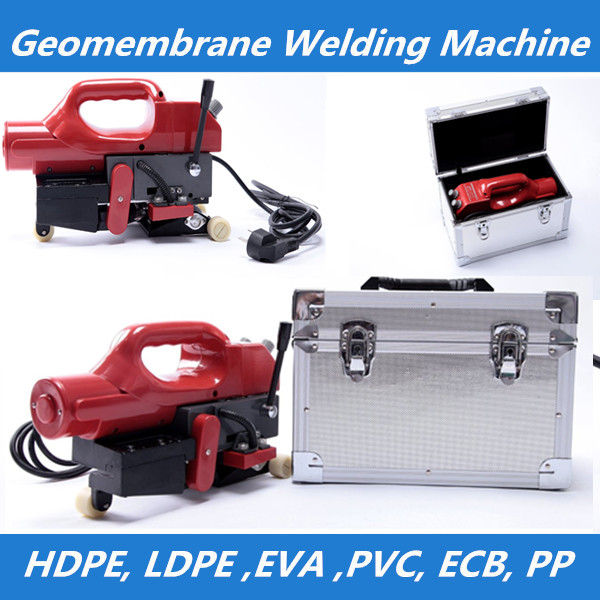

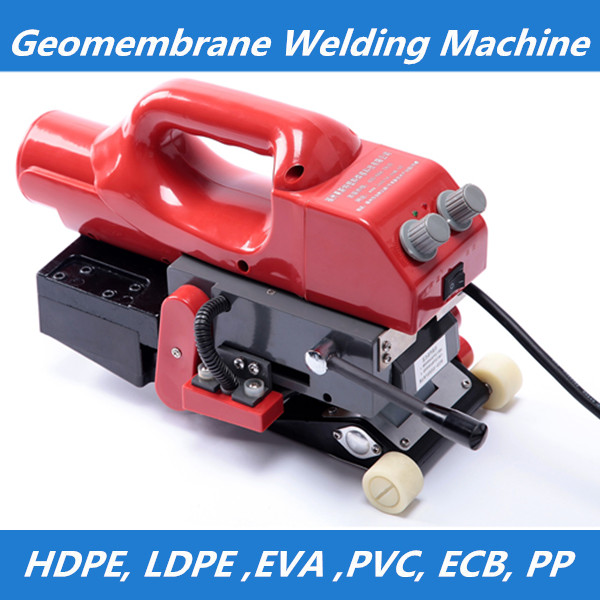

CX-NS800 Hot Wedge Geomembrane Welder

Technical Parameters: tarpaulin welding machine

Voltage:	220V±5%
Frequency:	50/60Hz solda geomembrana
Power:	800W saldatrici per teli in pvc
Welding speed:	0.5-5m/min
Heating temperature:	0-450°C
Thickness of material:	0.2mm1.5mm mquina de solda da geomembrana
Overlap width:	10cm mquina de solda da geomembrana
Welding width:	12.5mm×2, interior cavity 12mm
Seam strength:	≥85% base material (tensile resistant in shear direction)
Weight:	5kgs pe membrane plastic weld machine
Insulation class:	class II vinil hot wedge welder
Usage	for welding PE PVC and other hot melt materials

CX-NS800 Hot Wedge Welder - vinil hot wedge welder Hot wedge welder

geomenbrane welding machine
CX-NS800 Hot Wedge Welder- geomembrane sealing weld machine

CX-NS800 Hot Wedge Welder - hdpe welding rod- caliente para hdpe pvc geomembrana

Welding Operation

Applications: pe tarpaulin welding

1.Railway/ highway subway tunnel waterproof construction;

2.Water conservancy projects, man-made landscape;

3.Riverbank, aquaculture farm; ua caliente soldador

4..Refuse landfill, sewage treatment;

5.Chemical,mining industry; pvc membrane welding machine - smc-880

6.Construction waterproofing projects.

Tips:

If the thickness of HDPE geomembrane is 0.2-1.0 mm, you can choose silica pressure roller;

If the thickness of HDPE geomembrane is 1.0-1.5 mm, you can choose steel pressure roller.

You can choose silica pressure roller to weld PVC geomembrane because PVC is soft.

Package:

Package box: aluminium box inner and carton box outer

Package size: 37*24*28.5 cm

Weigh of package:8.5kgs mquina de solda da geomembrana

Package includes: a welder. a pair of silica roller, a hot wedge, a bag of 1A fuze,

a bag of 4A fuze, wrenches, screw drivers and a manual.
